Description

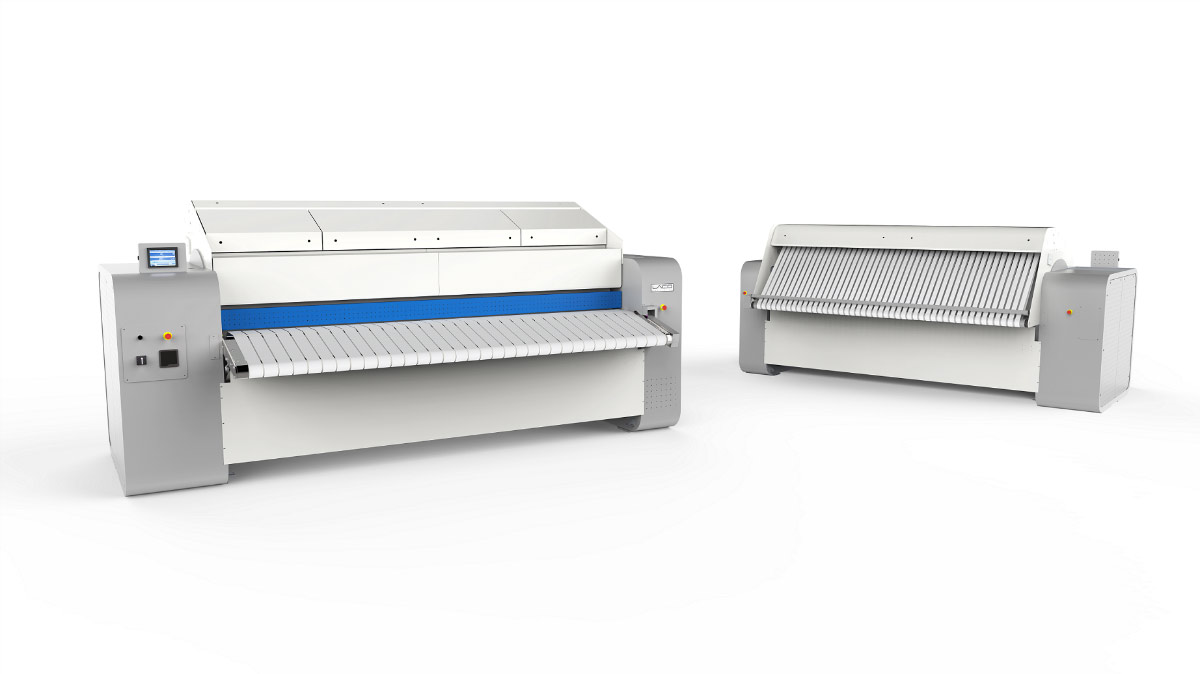

Laco Flatwork Ironer Grand King
Flatwork Ironer Grand King
First Class Ironing
Roller diameter of 1200mm
Production capacity up to 580 kg/hr for Steam heated and up to 730 Kg/hr for Gas Heated
Roller length 2500mm, 3000mm, 3300mm, 3500mm, 4000mm
Feeding and output tray in stainless steel
Very low energy consumption
LACO Air-stream® (Standard)
LACO Typhoon® (optional)
Gas, Steam Heated
LACO Innovation

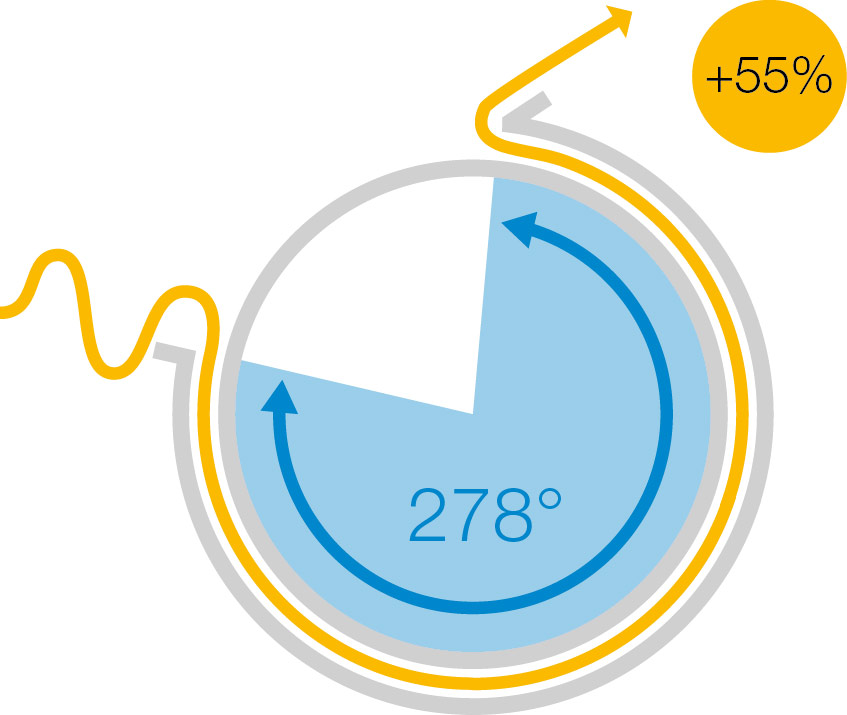

Large ironing surface, smaller footprint
No marks due to scrapers
LACO’s bed adapts to the roll
Flexible laser-welded bed® heated by thermal oil
Optimal energy recovery
Flexible laser-Welded bed®
Single piece flexing and self adjusting bed.
The bed is heated by circulation of thermal fluid oil.
Fully adjustable bed to roll pressure, integral hydraulic pump.
High capacity perforated Air-stream®’bed
LACO Air-stream® (Standard)
Suction of fresh air
Accelerated evaporation zone by ventilated chest
Suction of damp
The ironing capacity with the same chest diameter has increased by 20%
Laco Typhoon® (optional)
Extended feeding table with adjustable height
Textile is automatically spread at input
Accelerated evaporation zone by ventilated chest
Suction of damp
Laco Flatwork Ironer Grand King
Technical Data
| Model | Grand King | |||
|---|---|---|---|---|
| Roller Length (mm) | 2500, 3000, 3300, 3500, 4000 | |||
| Ironing Speed (m/min) | 5 – 9 | |||
| Roll drive motor (KW) | 5,5 | |||
| Hydraulic pump (KW) | 0,37 | |||
| Overall Width (mm) (Depends on Roller) | 3840 – 5340 | |||
| Overall Depth (mm) | 2705 | |||
| Overall Height (mm) | 2045 | |||
| Weight (Kg) | 3800 – 4900 | |||
| Gas Heating | ||||
| Gas Inlet | 5/4”” | |||
| Production with moisture retention 50% | 460 – 730 | |||
| Electric Heated | ||||
| Capacity Resistance (KW) | 120 – 200 | |||
| Production with moisture retention 50% | 460 – 645 | |||
| Steam Heated | ||||
| Steam Inlet | 6/4” | |||
| Production with moisture retention 50% | 370 – 580 | |||
Available Accessories
- Footpedal to stop ironer
- Return feed
- Perforated feeding belts with suction
- Adjustable hydraulic chest pressure
- Colour touch screen
