Description
Milnor Continuous Batch Washer
Custom made for the customer’s specific needs
More modules give greater production
Special design of compartments with double drum construction
Capacity of CBW 92048
Up to 118 kg
Lowest Water Consumption
Milnor PBW™ (PulseFlow Batch Washer) washers achieve very low fresh water consumption—less than any other tunnel washer.
Faster Washing
Milnor CBW batch washers with “True Top-Transfer” have washed about 30-40% faster than batch washers using “Bottom-Transfer” designs
The new generation of CBW Washers
Milnor Corporation has developed a revolutionary system—PulseFlow® Technology with several patented and patent-pending features
Enhanced chemical performance
The PulseFlow system is able to achieve maximum chemical performance with standing bath washing and high-velocity counterflow rinsing
Superior Mechanical action
Mechanical action accelerates dilution. Water and chemicals penetrate the load faster and soil is removed more quickly
Benefits
A Variety of Arrangements
Each Milnor CBW washer is custom-made for the customer’s specific needs. More modules give greater production. Water inlets and drain valves give greater flexibility. Mentor control allows pre-determined temperature and chemical levels for each individual bath.
Efficient Washing
Each module has a stationary shell to hold the wash bath and a rotating, perforated inner cylinder. Each module can be used for different baths. Goods proceed through the formula by traveling from module to module, via a perforated top transfer scoop. There are no stops and starts for draining and filling after each bath. This saves time, compared to conventional washing machinery
Fast Loading
A conveyor or overhead bag system may feed the load chute.
Mentor Control
Fully automated process thanks to the Mentor control system.
Temperature Controls
Any module can be equipped with a steam inlet and temperature probe.
Supplies
Supply inlets can be placed in each module. The Mentor control dictates the amount of supplies and when, or if, they are added to the specific goods in each module during the wash cycle.
Post-Wash
The MultiTrac system relays each batch’s post-wash requirements to other parts of the system; extractor, shuttle, dryers and conveyors. A CRT display identifies batch location and status. Where multiple batch dryers are used, the control system prevents mixing of incompatible batches in the same dryer.
Top Transfer Increases Productivity
Milnor top transfer CBW washers have proven higher productivity in more than 1,000 installations worldwide. They wash faster than other tunnel washers due to superior dilution which means better soil removal.
Top Transfer Gives Better Control of Chemicals
Milnor’s top transfer feature assures bath integrity. Baths are truly independent, so the washing formula can work as planned. Because water is not pumped forward with each transfer, chemicals are better targeted to the proper baths. They don’t migrate uncontrollably to subsequent baths. Titrations show that with a Milnor, it is far easier to control pH.

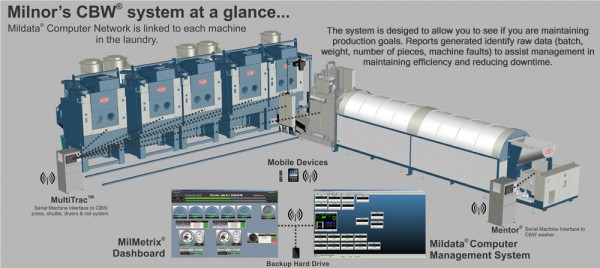

MILDATA ® COMPUTER NETWORK
Features
- Links serial microprocessor controls in Milnor washer-extractors, tunnel washers, extractors, dryers, and materials handling systems.
- Each machine linked to the network can receive a virtually unlimited number of processing formulas.
- Each machine can also report back actual operating data as each process for each load occurs.
- Central programming
To save time and help ensure immediate use. Equipment in operation is not interrupted. Remote programming is especially useful in multi-plant situations. - Data reporting
Provides management with concise summary reports via screen or printer. Can include machine production, employee production, formula mix, formula cost, machine error, and even custom reports. - Production monitoring
To keep you in touch with current conditions. This information can be accessed at remote locations, too.
PulseFlow® Technology
Milnor’s PulseFlow Technology is a unique and simple solution for faster and more water-efficient washing in a Continuous Batch Washer.
Pellerin Milnor Corporation has developed a revolutionary system—PulseFlow® Technology with several patented and patent-pending features
—which has been successfully implemented in healthcare, hospitality, and linen supply applications worldwide. The superior soil removal and
rinsing performance of PulseFlow Technology has been verified by independent testing laboratories and has earned a Hohenstein Certificate.
PulseFlow Technology in a new Milnor CBW® washer offers:
• Lowest Water Consumption
• Enhanced Chemical Performance
• Low Energy Usage
• Faster Washing
PulseFlow Technology combines traditional True Top Transfer with standing bath washing and controlled intermittent counterflow rinsing in
every process module. For the greatest part of each cycle, processing without counterflow creates standing baths so chemicals in the wash
liquor reach equilibrium faster and are allowed to do their job without being diluted. Then, for a very short portion of each cycle, high-velocity
counterflow is applied, “PulseFlow,” thus providing the first part of the required dilution effect. The second stage of dilution, True Top Transfer,
ensures the goods move into far cleaner water every time. Dedicated rinse modules are not required, meaning more production from
fewer modules
Milnor Continuous Batch Washer 92048
Technical Data
| Electric | Steam |
| Model | 76028 | 76039 | 92048 | |
|---|---|---|---|---|
| Drum Dimensions | ||||
| Capacity (kg) | 50 | 68 | 120 | |
| Diameter (mm) | 1930 | 1930 | 2337 | |
| Depth (mm) | 711 | 990 | 1219 | |
| Approx. Dimensions | ||||
| Width (mm) | 2311 | 2311 | 3290 | |
| Height (mm) | 2755 | 2755 | 2572 | |
| Length of modules | ||||
| 3 | 5440 | 6160 | 7530 | |
| 4 | 6220 | 7180 | 9110 | |
| 5 | 7000 | – | 10680 | |
| 6 | 8340 | 9770 | 12260 | |
| 7 | 9120 | 10790 | 13840 | |
| 8 | 9900 | 11820 | 15420 | |
| 9 | 10680 | 13380 | 46990 | |
| 10 | 11460 | 14400 | 18570 | |
| 11 | 12800 | 15420 | 20150 | |
| 12 | 13580 | 16440 | 21720 | |
| Connections | ||||
| Water inlets (in) | 3″/ 2″ | 3″/ 2″ | 3″/ 2″ | |
| Drain Valve (in) | 8″ | 8″ | 8″ | |
| Steam(in) | 2″ | 2″ | 3″ | |
| Air (in) | 1/2″ | 1/2″ | 1/2″ | |
| Water | ||||
| Approx. consumption | 2.5 L/kg | 2.5 L/kg | 2.5 L/kg | |
