Description

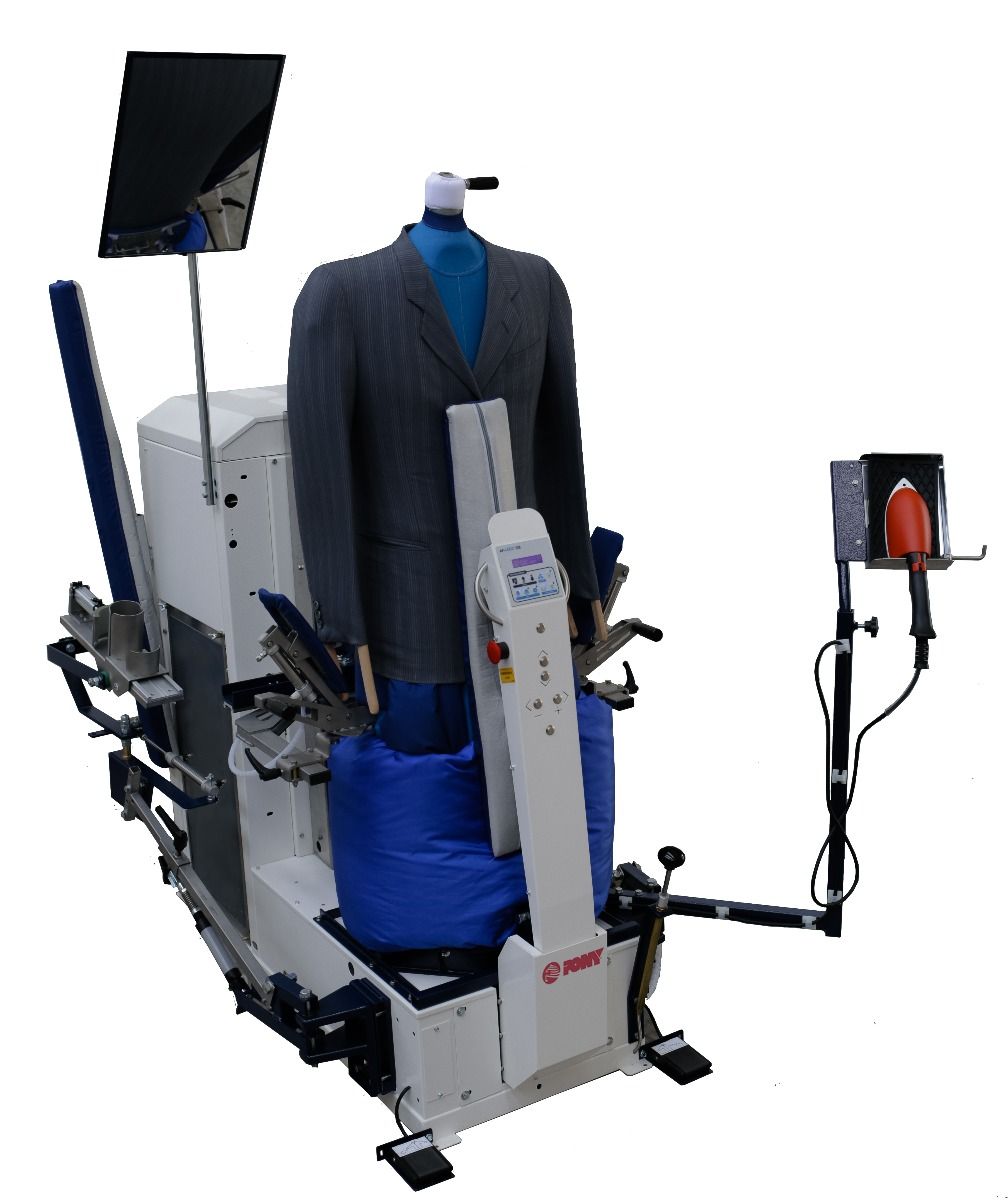

Pony Multi Finisher 403
Shirt and universal form finisher 403
Form finisher for the combined shirts and garment finishing with brilliant results and extremely simple use. Pneumatic closing of the front paddle, with steam-heated counter-paddle. Manual trolley for the alignment with the shirt hem, two manual side clamps with pneumatic closing. Air-operated sleeve clamps. Manual rear clamps. Manual collar locking system. The form finisher can be easily operated to press jackets and coats, etc. Cycles controlled by microprocessor, possibility to operate manual cycles.
This shirt unit doesn’t require trained personnel. A few hours of practice are enough to achieve excellent results and stunning performances, indeed.
Easy to Use
With the new “AF LOGIC” controls, the operator can switch from one mode to another by SIMPLY pressing a key, thus automatically setting the unit to operate according to the required parameters
403 models feature three operation modes:
• SHIRT, for shirts and lab-coats
• WET, for wet-cleaned outerwear
• DRY, for dry-cleaned outerwear.
Standard features on all models include:
• Padded flexible paddles to prevent: shine marks on dark fabrics, paddle pressure marks, button marks on the shirt.
• Two front interchangeable paddles.
• Cycle-extension button.
• Manual cycles available
Pony Multi Finisher 403
Technical Data
Model | 403-404 without Boiler | 403-404 with Boiler |
---|---|---|
Blowing motor (kW) | 1,5 | 1,5 |
Heater for hot air (kW) | 3 + 6 + 2 + 2 + 2 | |
Pump motor (kW) | 0,5 | |
Steam working pressure (bar) | 5 ÷ 7 | 4,8 |
Boiler drain | 1/2” | |
Steam consumption (kg/h) | 20 ÷ 27 | |
Net weight (Kg) | 285 | 315 |
Gross weight | 315 | 345 |
Overall dimensions (mm) | 1500 x 2500 | 1500 x 2500 |
Volume (m3) | 2,72 | 2,72 |
Available Accessories
Options for 404
- Built-in electronic boiler.
- Water spray gun with support.
- Electric iron for touch-ups.
- Water spray gun
