Description

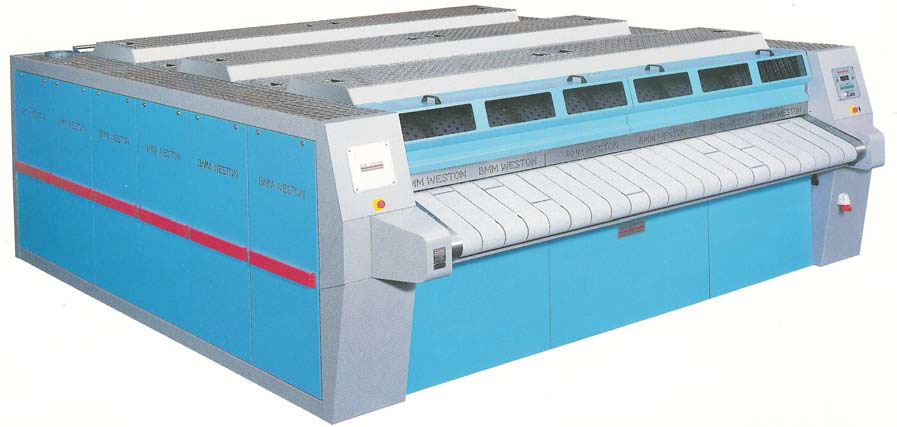

BMM Weston 1300 Steam Flatwork Ironer
BMM Weston 1300 Flatwork Ironers feature
Optimised bed design that ensures efficient operation over a wide range of conditions.
Pneumatic raising and automatic aligning of beds and rolls.
Integrated design of rolls and beds to ensure uniform heat transfer, thus optimizing clothing life.
Chest contours that eliminate gap pieces.
Minimum energy needs for drive system.
Simple, electronic, variable speed motor and drive system providing quiet, efficient, slip-free transition.
Analogue information system.
Inclined, ergonomically designed feed table for dafe, efficient hand or mechanical feeding.
Centralised moisture extraction system.
Thermally insulated.
Removable side covers for external servicing.
BMM Weston 1300 Steam Flatwork Ironer
Technical Data
| Electric | Gas | Steam | Oil |
| Dimensions | ||||
|---|---|---|---|---|
| No. of rolls | 1 | 2 | 3 | |
| Length – A | 2286 mm | 3836 mm | 5447 mm | |
| Width – B | 4156 mm | 4156 mm | 4156 mm | |
| Height – C | 1781 mm | 1781 mm | 1781 mm | |
| Technical data | ||||
| No. of rolls | 1 | 2 | 3 | |
| Working width | 3000 mm | 3000 mm | 3000 mm | |
| Roll diameter | 1300 mm | 1300 mm | 1300 mm | |
| Speed range* | 0-30 m/min | 0-40 m/min | 0-52 m/min | |
| Evaporative capacity | 214 Kg/hr | 428 Kg/hr | 642 Kg/hr | |
| Steam pressure | 6.2-13.8 Bar | 6.2-13.8 Bar | 6.2-13.8 Bar | |
| Steam consumption (max) | 275 Kg/hr | 550 Kg/hr | 825 Kg/hr | |
| Air pressure | 5.5-7 Bar | 5.5-7 Bar | 5.5-7 Bar | |
| Air consumption (free air lift cycle) | 48 Litres | 96 Litres | 144 Litres | |
| Electrical supply (standard) | 380-415 Volts / 3ph + N / 50Hz | |||
| Electrical consumption | 8 kW | 13.5 kW | 24.5 kW | |
| Suction outlet (OD) | 200 mm | 200 mm | 200 mm | |
| Suction inlet NB | 65 mm | 65 mm | 65 mm | |
| Condense outlet NB | 50 mm | 50 mm | 50 mm | |
| Air inlet NB | 10 mm | 10 mm | 10 mm | |
| Export Case Dimensions | ||||
| 1 Roll | 1 case | 4300x2335x1876 mm | ||
| 2 Roll | 1 case | 4300x2145x1876 mm | ||
| 1 case | 4300x1839x1876 mm | |||
| 3 Roll | 1 case | 4300x2145x1876 mm | ||
| 1 case | 4300x1650x1876 mm | |||
| 1 case | 4300x1839x1876 mm | |||
| * Maximum operating speed dependent on work type and moisture retention rate | ||||
Available Accessories
Optional extras include
- Integral Fast Feed aid.
- Feed through assembly.
- Hoods and walkways.
- Handrails and interconnected ladder.
- Take-off table assembly.
- Digital information system.
- Steam trap monitoring.
- High temperature clothing.
- Feeder/Folder, plugs and sockets.
- Special wiring to stop ironer from folder.
